In industrial inkjet printing, selecting the right ink involves far more than choosing vibrant colors. The quality of your ink directly affects print stability, curing performance, adhesion to various substrates, and the durability of the printed image during post-processing.
As digital inkjet printing has expanded beyond traditional signage into industrial applications such as leather, footwear, plastics, acrylic, glass, and other specialty materials, manufacturers now face a different challenge. The question is no longer whether a design can be printed, but whether it can be produced consistently and reliably at scale.
LED UV Ink utilizes LED UV light to initiate a photopolymerization reaction, allowing ink droplets to cure almost instantly upon contacting the substrate and form a durable protective film. Thanks to its rapid curing speed, broad substrate compatibility, and flexibility for digital production, LED UV Ink has become one of the core technologies in modern industrial inkjet printing.
However, achieving optimal print quality requires more than simply filling a printer with LED UV Ink. Printhead compatibility, LED curing conditions, ink formulation, substrate characteristics, printing speed, and post-processing requirements all work together as an integrated system. This guide highlights the key factors every industrial printer should understand before adopting or switching to a new LED UV Ink.
Simply put, LED UV Ink is an inkjet ink that cures instantly when exposed to LED UV light at a specific wavelength.
After the ink is jetted onto the substrate, the photoinitiator system within the ink absorbs UV energy and rapidly triggers a chemical polymerization reaction. As a result, the liquid ink transforms almost immediately into a solid, durable ink film.
A typical LED UV Ink formulation consists of four primary components:
For industrial printing operations, ink should never be viewed as just another consumable. Instead, it is one component of an integrated printing system that includes the ink, printhead, LED curing unit, substrate, and production process. Each element must work together to achieve consistent printing performance.

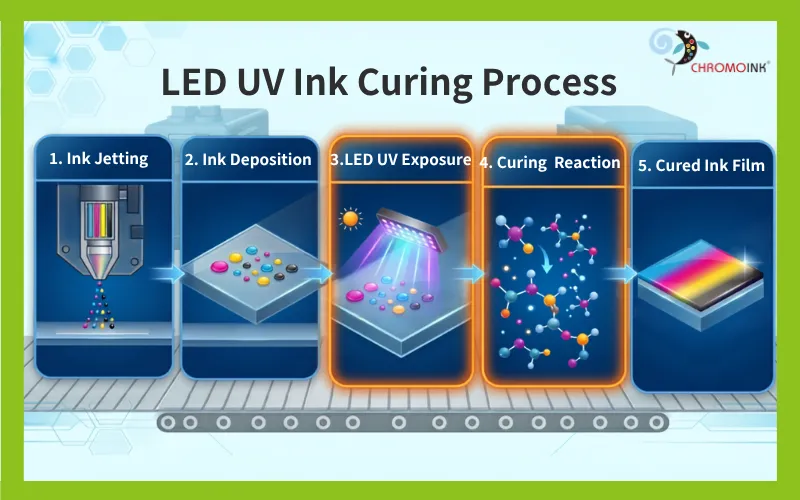

The curing process of LED UV Ink is straightforward:
Ink is jetted → Deposited onto the substrate → Exposed to LED UV light → UV energy activates the photoinitiator → Liquid ink polymerizes into a solid ink film
.webp)
LED UV Ink cures rapidly because the photoinitiator absorbs UV light at a specific wavelength and initiates polymerization, allowing monomers and oligomers to crosslink into a durable polymer network.
According to RadTech International, photoinitiators are the key components responsible for initiating the curing reaction in UV-curable formulations.
For more information about photoinitiators and UV curing technology, refer to RadTech International: UV Basics – Photoinitiators.
The most critical factor in this process is matching the LED wavelength with the ink formulation.
Different printers use different LED curing systems, and each ink formulation is designed to absorb specific wavelength ranges. If the LED light source and the ink are not properly matched, the surface may appear dry while the underlying ink remains only partially cured, potentially causing a variety of production and quality issues.
During production, curing performance is influenced by several factors, including:
If you encounter issues such as a tacky surface, poor abrasion resistance, insufficient adhesion, or peeling during post-processing, the problem should not automatically be attributed to the ink itself. The entire printing system—including the equipment, curing parameters, and substrate conditions—should be evaluated together.
1. Instant Curing for Faster Production
Under proper curing conditions, LED UV Ink cures immediately after printing. Printed materials can move directly to cutting, rewinding, laminating, or other finishing processes without waiting for drying, significantly improving production efficiency.
2. Compatible with a Wide Range of Materials
LED UV Ink can be used on numerous substrates, including:
Its versatility makes it an ideal solution for signage, decorative printing, footwear manufacturing, and industrial customization.
Note: Being printable does not necessarily guarantee strong adhesion. Surface contamination, cleaning procedures, and substrate pre-treatment all have a significant impact on final adhesion performance.
3. Ideal for Heat-Sensitive Materials
Compared with conventional thermal drying systems, LED curing generates substantially less heat.
This makes LED UV Ink particularly suitable for thin films, plastics, and other heat-sensitive materials that may warp, shrink, or deform under high temperatures.
4. Designed for Flexible, Short-Run Manufacturing
Unlike conventional printing processes, digital inkjet printing requires no printing plates.
Whether producing a single customized graphic or multiple short-run jobs, production can switch between designs instantly, making LED UV Ink an excellent choice for today`s demand for high-mix, low-volume manufacturing.
Different substrates require different performance considerations during production.
Substrate | Typical Applications | Key Performance Considerations |
| PU / Synthetic Leather | Footwear, Leather Goods | Ink flexibility, bend resistance, adhesion |
| PVC | Signage, Display Graphics | Adhesion, outdoor weather resistance |
| Acrylic | Display Panels, Decorative Products | Adhesion, surface appearance |
| Glass | Interior Decoration, Customized Gifts | Surface preparation, adhesion, abrasion resistance |
| Metal | Industrial Labels, Mechanical Components | Surface cleanliness, scratch and wear resistance |
| Plastics | Consumer Electronics, Plastic Parts | Plastic type (PP, PE, ABS, etc.), surface energy |
| Ceramics | Customized Decorative Building Materials | Adhesion, post-processing compatibility |
For example, leather and footwear applications require excellent flexibility because the material repeatedly bends and stretches during use. If the cured ink film is too rigid, cracking may occur during flexing.
In contrast, glass and metal have smooth, low-porosity surfaces that typically require proper cleaning or primer application before printing to achieve reliable adhesion.
Related Reading: If your application involves PU, synthetic leather, or footwear, explore CHROMOINK LED UV Leather Ink to learn more about flexible ink formulations and best practices for leather printing.
When selecting LED UV Ink, don`t focus solely on price or color performance. The real key to profitability is choosing an ink that integrates seamlessly with your equipment and production process.
Based on over 20 years of practical experience from the CHROMOINK ink R&D team, supporting a wide range of industrial printing equipment, substrates, and application testing, successful implementation of LED UV Ink requires a comprehensive evaluation—not just of the ink itself, but also of printhead compatibility, curing conditions, substrate characteristics, and production workflow.
The following six factors should be evaluated before introducing a new LED UV Ink into your production line.
Evaluation Item | What to Evaluate | Potential Issues if Not Matched |
1. Printhead Compatibility | Printhead model, ink viscosity, and other physical properties | Nozzle clogging, misfiring, unstable jetting |
2. LED Curing Conditions | LED wavelength, irradiation energy, and actual printing speed | Incomplete curing, tacky surface |
3. Substrate Compatibility | Substrate type, surface energy, and pre-treatment requirements | Poor adhesion, easy peeling or scratching |
4. Ink Film Flexibility | Hardness, flexibility, and elongation after curing | Cracking when the substrate bends or stretches |
5. Production Stability | Continuous printing performance and printhead recovery after downtime | Frequent downtime, excessive cleaning, costly rework |
6. End-Use Requirements | Abrasion resistance, weather resistance, regulatory compliance, and environmental standards | Product rejection, customer complaints, or failure to meet international market requirements |
Ensure Printhead Compatibility
Even within the same printhead brand—such as Epson, Ricoh, or Konica Minolta—different models have different requirements for ink viscosity, surface tension, and jetting characteristics.
Using an incompatible ink may result in nozzle clogging, ink misting, unstable jetting, and inconsistent print quality.
Related Reading: Ink Dropout Solutions: From Causes to Fixes
Don`t Judge Curing Performance by Lamp Power Alone
The wattage (W) of an LED curing system tells only part of the story.
Proper curing also depends on multiple factors, including:
These parameters collectively determine whether the ink can cure completely under actual production conditions.
Related Reading: Understanding Wavelength, Irradiance, and Energy Density in LED UV Curing
Consider the Total Cost of Ownership
Industrial printing costs extend far beyond the price of ink per liter.
Hidden costs—including production downtime, printhead cleaning, rejected prints, material waste, and rework—often have a much greater impact on overall profitability than ink price alone.
Related Reading: CHROMOINK LED UV Ink for Industrial Printing Applications
CHROMOINK Technical Insight on LED UV Ink
When helping customers implement LED UV Ink, CHROMOINK evaluates much more than the ink formulation alone.
Our technical team simultaneously assesses printhead compatibility, substrate characteristics, LED curing conditions, and the customer`s actual production process to minimize downtime, reduce rework, and ensure stable, high-quality production.
Before introducing a new ink into full-scale production, conducting thorough testing can significantly reduce production risks and unexpected costs.
We recommend completing the following six tests before production begins:
1. Print Stability Test
Run continuous printing for several hours or restart the printer after a period of downtime to verify nozzle stability and recovery performance.
2. Adhesion Test
Print directly on the customer`s actual production substrate to confirm sufficient adhesion under real application conditions.
3. Curing Performance Test
Optimize printing speed, LED curing intensity, and ink coverage to determine the ideal production parameters.
4. Abrasion Resistance Test
Simulate transportation, post-processing, and real-world product usage to evaluate wear resistance.
5. Flexibility and Stretch Test
For flexible materials such as leather and footwear, perform repeated bending and stretching tests to verify that the cured ink film resists cracking.
6. Continuous Production Test
Conduct a full production run to ensure consistent nozzle performance, color reproduction, and curing quality from the first print to the last.
LED UV Ink provides industrial inkjet printing with fast curing, compatibility across a wide range of substrates, and the flexibility required for digital manufacturing. However, final printing performance is never determined by the ink alone.
Factors including the printhead, ink delivery system, LED curing conditions, substrate surface, adhesion requirements, ink flexibility, and post-processing all contribute to the final result.
For this reason, industrial printers should evaluate LED UV Ink as part of the entire printing system rather than comparing products based solely on price or technical specifications. Considering printhead compatibility, curing performance, substrate adhesion, ink film properties, and long-term production stability together helps reduce downtime, minimize rework, and shorten the trial-and-error process.
Q1. Can LED UV Ink be used on every type of substrate?
Not necessarily.
Adhesion depends heavily on substrate cleanliness, surface contamination, and the type of material being printed. Some substrates—particularly certain plastics and glass—require surface treatments such as corona treatment, plasma treatment, or primer application before printing.
Always conduct testing on the actual production substrate before mass production.
Related Reading: Choose the Right Media for Stunning Inkjet Results
Q2. Can any LED UV Ink be used in any LED UV printer?
No.
Different printers use different printheads, ink delivery systems, LED wavelengths, and curing parameters.
Using an incompatible ink may damage expensive printheads or compromise print quality. Always confirm compatibility with your ink supplier before switching inks.
Q3. Why Doesn`t LED UV Ink Cure Completely?
The most common causes include:
If incomplete curing occurs, evaluate the ink, equipment, curing parameters, and substrate conditions together to identify the root cause and optimize production performance.
